| Name: | SMD Outdoor Fixed LED Display 4-20mm |
| Pitch: | 4mm丨5mm丨6mm丨8mm丨10mm丨16mm丨20mm |
| Application: | Outdoor Fixed installation |
PRODUCT DESCRIPTION
◆ SMD Outdoor Fixed LED Display
The Outdoor SMD LED Display is easy to move, install and maintain, so it saves the labor and time costs. Highly applicable for bank, promotion, exhibition, highway, station, KTV, stadium, airport and other outdoor places.

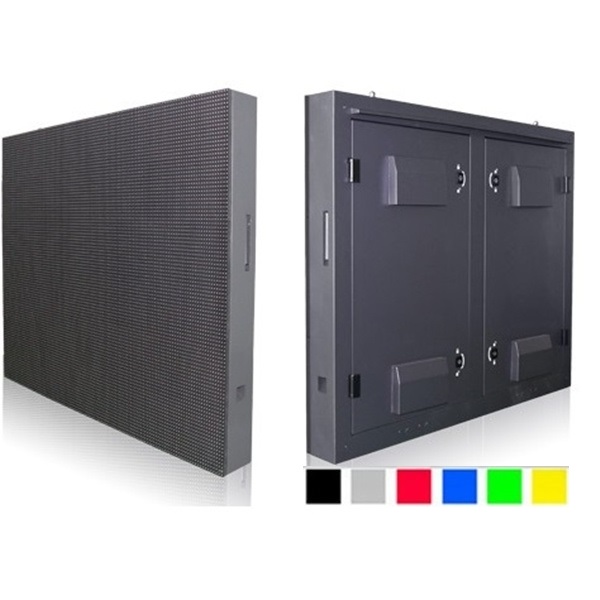

★ Unique Cabinet Design - Easy to Install & Transport
The cabinet of SMD LED Screen features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.
★ Light and convenient handle
Thinner and lighter than the traditional cabinet, over 20% lighter than other supplier.
★ Better Protection
The Outdoor SMD LED display features a Front IP65 waterproof grade which protects the display from any damage. A dedicated guard prevents the screen from any damage and environmental effects. The screen will remain harmless in every condition and in every weather.
★ Good heat dissipation effect, long lifespan
Optimize the cooling system, dual-channel cooling design, low attenuation, long service life.
★ Brand Names you can Trust

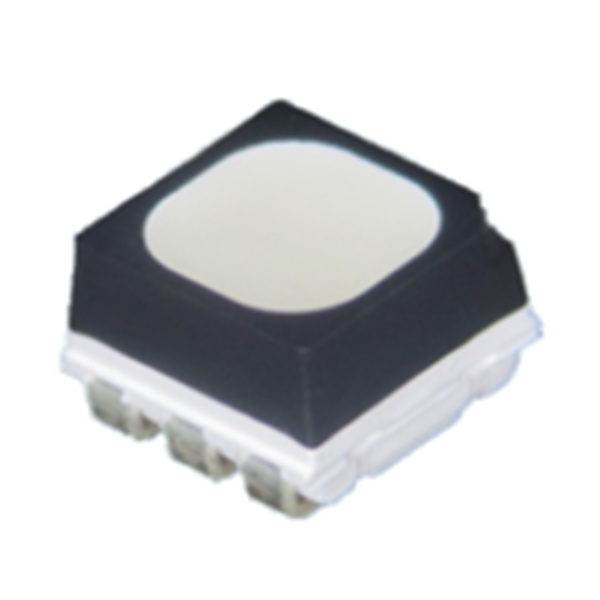

We purchase the chips, ICs and material from the most renowned vendors like Cree (USA), Nichia (Japan), Epistar, MBI,PWM and MingYang. Best quality material is used to manufacture the products. Extra care is taken while assembling the products. So you can always trust the quality of this product.
★ High Refresh Rate And High Gray Scale
The Outdoor Advertising is manufactured by using best quality material, purchased from most reputed vendors. The final products feature supreme quality and offers best outputs. High refresh rate and gray scale ensures the picture quality remains seamless.
★ Featured quality materials
High-quality raw materials, mature technology, large-scale production ensure stable and reliable quality.
★ Fast and easy install
Accurate, fast, flexible positioning installation, can effectively deal with different installation environment.
■Technical Parameters
| Item | Part Number | OS-P4 | OS-P5 | OS-P6 | OS-P8 | OS-P10 | OS-P16 | OS-P20 |
| LED | Pixel Pitch((W/H) ) (mm) | 4 | 5 | 6 | 8 | 10 | 16 | 20 |
| Pixel Density (px/sqm) | 62500px/sqm | 40000px/sqm | 27777px/sqm | 15625px/sqm | 10000px/sqm | 3906px/sqm | 2500px/sqm | |
| The LED type | SMD2525 | SMD2727 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | SMD3535 | |

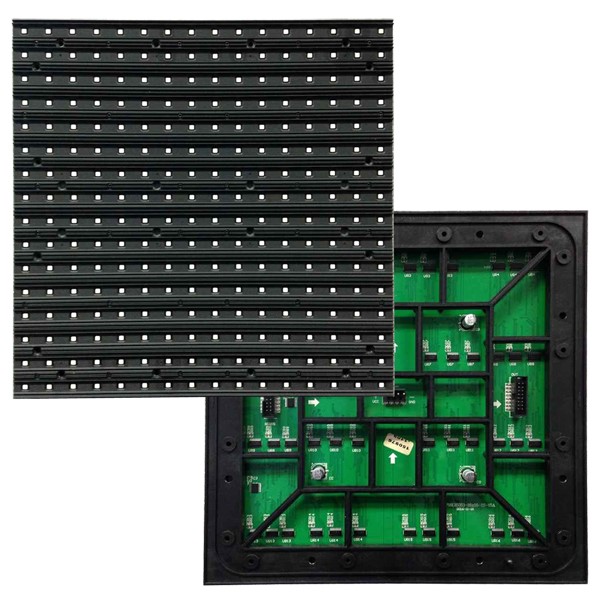

| Unit Module | Unit Module size (WxHxD)mm | 256×128x15mm | 160×160x15mm | 192×192x15mm | 256×128x15mm | 320×160x20mm | 256×256x25mm | 320×160x25mm |
| Module resolution | 64*32 px | 32*32 px | 32*32 px | 32*16 px | 32*16 px | 16*16 px | 16*8 px | |
| Driver mode | 1/8san | 1/8san | 1/8san | 1/4san | 1/2san | Static | Static | |
| Mask Material | 90%plastic+10% fiber | 90%plastic+10% fiber | ||||||
| Module current (w/pcs) | 36w/pcs | 36w/pcs | 36w/pcs | 36w/pcs | 36w/pcs | 10w/pcs | 25.6w/pcs | |
| Module Weight (Kg/pcs) | 0.33kg/pcs | 0.27kg/pcs | 0.37kg/pcs | 0.32kg/pcs | 0.5kg/pcs | 0.8kg/pcs | 0.8kg/pcs | |
| Cabinet | Cabinet Size(WxHxD) (mm) (customizable) | 512x512x140mm Customizable | 640x640x140mm Customizable | 960x960x140mm Customizable | 1024x768x140mm Customizable | 960x800x140mm Customizable | 1024x1204x145 mm Customizable | 960x960x145mm Customizable |
| Cabinet Resolution (px) | 128*128 px | 128*128 px | 160*160 px | 128*96 px | 96*80px | 64*64px | 48*48px | |
| Cabinet Material | Aluminum | Aluminum | Steel /Aluminum | Steel /Aluminum | Steel /Aluminum | Steel /Aluminum | Steel /Aluminum | |
| Cabinet Weight ( kg/m²) | 35 kg/m² | 35 kg/m² | 40 kg/m² | 40 kg/m² | 40 kg/m² | 45 kg/m² | 45 kg/m² | |
| Transparency | Solid | Solid | Solid | Solid | Solid | Solid | Solid | |
| Concave (customizable) | Max.10° | Max.10° | Max.10° | Max.15° | Max.15° | Max.15° | Max.15° | |
| Maintenance Mode | Rear | Rear | Rear | Rear | Rear | Front/Rear | Front/Rear | |
| Opto. | Brightness (CD/m² ) | 5000CD/m² | 5000CD/m² | 5500CD/m² | 6000CD/m² | 6000CD/m² | 2000~6000CD/m² | 2000~6000CD/m² |
| ViewingAngle(H/V) (°) | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | 140°/120° | |
| RefreshFrequency (Hz) | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | 1920 Hz | |
| Gray Scale（bit） | 12~16bit | |||||||
| Display Color | 281Billion | |||||||
| Brightness adjustment | 256grade | |||||||
| Uniformity correction | Brightness + calibratioty | |||||||
| Control system | Control Mode | Synchronization display with control PC by DVI | ||||||
| Support video Input | RF, Composite Video, S-Video, DVI, CATV ect | |||||||
| Frame Frequency | 50~60Hz | |||||||
| Control Distance | HSYV:100m; SMF:20KM | |||||||
| Power supply | Power supply (Input) | AC 90~264V 50/60HZ | ||||||
| Max.Power Consumption (W/m²) | 1100W/m² | 950W/m² | 660W/m² | 640W/m² | 1000W/m² | 400W/m² | 400W/m² | |
| Avx.Power Consumption (W/m²) | 500W/m² | 400W/m² | 310W/m² | 300W/m² | 400W/m² | 150W/m² | 200W/m² | |
| Reliability | Operating Temperature | - 20℃~+60℃ | ||||||
| Operating Humidity | 10~95% RH | |||||||
| Lifetime (hr) | 100,000 | |||||||
| MTBF(hr) | 20,000 | |||||||
| Protection Level | Moistureproof, dustproof, anti-corrosion, anti-static, lightning protection, over current&short circuit&overvoltage&undervoltage protection function | |||||||
| IP Rating | IP65 | |||||||
| Certifications | CE, ETL, FCC,CCC | |||||||

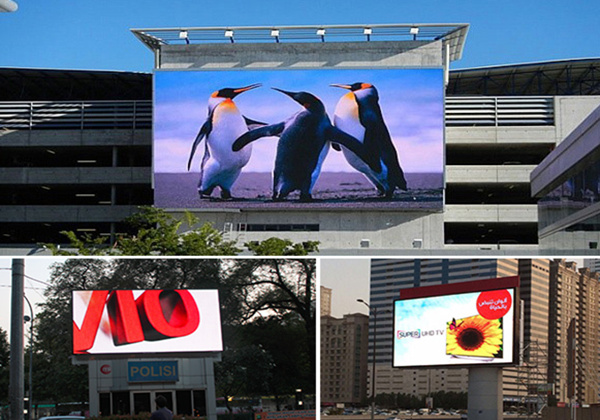

●Application
The SMD Outdoor Fixed LED Display can be used for many purposes and at many places. It can be used for advertisement, banner display, demonstration, video displays, educational purposes and much more. You may use it at outdoor areas like highways, streets, malls, stages, stadium and at many more outdoor places |
|
