Name: | Front/Rear Maintenance K500 Panel 2-6mm |
Pitch: | 2.6mm丨2.97mm丨3.91mm丨4.81mm丨5.95mm丨6.25mm |
Application: | Fixed installation 丨Hanging installation丨Stacking |
PRODUCT DESCRIPTION
◆ K500 Panel LED Display
K500 Panel LED Display offers stunning definition, contrast and color reproduction that present crystal-clear pictures in every condition. The displays are widely used for bank, stage, concert, hotel, station, summit, exhibition and theater etc.
★ Ultra-thin cabinet design, easy for install
The ultra-lightweight cabinet made is aluminum alloy which gives it extra strength. The cabinet of R500 Panel is designed with perfection, making it really easy to install. Also, the quick-lock feature requires no technical skills to install and uninstall.
★ Front and rear maintenance
Module, power supply and receiving card can be serviced from front or back of led display which is help to save maintain cost and convenient for you
★ Seamless Splice
K500 Panel for Stage Show can be installed within minutes, without any special tools. You may configure the LED Screen for Stage Show as per your requirements and choice. Adjust the brightness, gray scale and picture quality as per your choice. Advanced adjustment options allow you to set up the display as per the environment conditions and area of installation.
★Curved design
It can be curved design with angle regulators , 10 degree outter and 10 degree inner
★ High Refresh Rate and High Gray Scale
K500 Panel is manufactured as per latest technology-dynamic scanning mode which offers higher Gray Scale and high refresh rate. It features a high refresh rate of 1920Hz, producing best quality outputs in form of pictures, videos and texts.
★ Featured quality materials
High-quality raw materials, mature technology, large-scale production ensure stable and reliable quality.
■Technical Parameters
Item | Product Parameter | KI-P2.6 | KI-P2.97 | KI-P3.91 | KI-P4.81 | KI-P5.95 | KO-P3.91 | KO-P4.81 | KO-P5.95 |
Physical | Pixel Pitch(mm)(W/H) | 2.604 | 2.976 | 3.91 | 4.81 | 5.95 | 3.91 | 4.81 | 6.25 |
LED Type | SMD1515 | SMD1515 | SMD2121 | SMD2121 | SMD3528 | SMD1921 | SMD1921 | SMD1921 | |
Pixel Density (px/m²) | 147,456 | 112,910 | 65,410 | 43,402 | 28,246 | 65,410 | 43,402 | 28,246 | |
Cabinet Size(WxHxD)(mm) | 500x500x80mm / 500x1000x80mm | ||||||||
Cabinet Resolution (px) | 192*192 | 168*168 | 128*128 | 104*104 | 84*84 | 128*128 | 104*104 | 84*84 | |
Cabinet Material | Die-casting aluminum | ||||||||
Cabinet Weight ( kg/pcs) | 6.5kg/pcs | 6.5kg/pcs | 6.5kg/pcs | 6.5kg/pcs | 9kg/pcs | 9kg/pcs | 9kg/pcs | 9kg/pcs | |
Transparency | NG | ||||||||
Curve(customizable) | Max.15° | ||||||||
Maintenance time | 10S/Cabinet | ||||||||
Maintenance Mode | Front/Rear | ||||||||
Opto. | Driving method | 16 san | 14san | 16 san | 13 san | 14 san | 16 san | 13 san | 14 san |
Brightness (CD/m² ) | 1500CD/m² | 1500CD/m² | 1500CD/m² | 1500CD/m² | 1500CD/m² | 5000CD/m² | 5000CD/m² | 5000CD/m² | |
ViewingAngle(H/V) (°) | 140°/140° | ||||||||
RefreshFrequency (Hz) | 1920-3840Hz | ||||||||
Gray Scale(bit) | 12-16bit | ||||||||
Power | Power supply (Input) | AC 90~264V 50/60HZ | |||||||
AVx.Power/ Max.Power Consumption (w/m²) | 200/600 w/m² | 200/600 w/m² | 200/600 w/m² | 200/600 w/m² | 200/600 w/m² | 350/800 w/m² | 350/800 w/m² | 350/800 w/m² | |
Environment | Operating Temperature(℃) | - 20℃~+60℃ | |||||||
Operating Humidity | 10%-95%RH | ||||||||
Lifetime(hr) | 100,000 | ||||||||
IP Rating | IP41 | IP65 | |||||||
Certifications | CE, ETL, FCC,CCC | ||||||||
App | Indoor/Outdoor | Fixed installation / Hanging installation /Stacking |

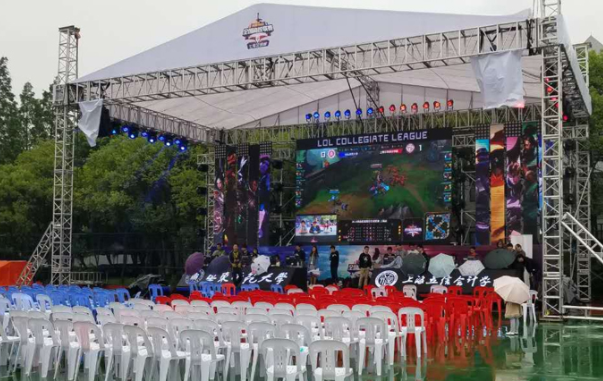

●Application
K500 Panel is highly usable at outdoor places like malls,stages, promotion, exhibitions, stations, stadiums stages, promotion, exhibitions, stations, stadiums stages, promotion, exhibitions, stations, stadiums, etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space. |
