| Name: | Indoor/Outdoor Transparentpanel 3-15mm |
| Pitch: | 3.9mm丨7.8mm丨10.4mm |
| Application: | Fixed installation 丨Hanging installation丨Stacking |
PRODUCT DESCRIPTION
◆ The Transparent Panel LED Display

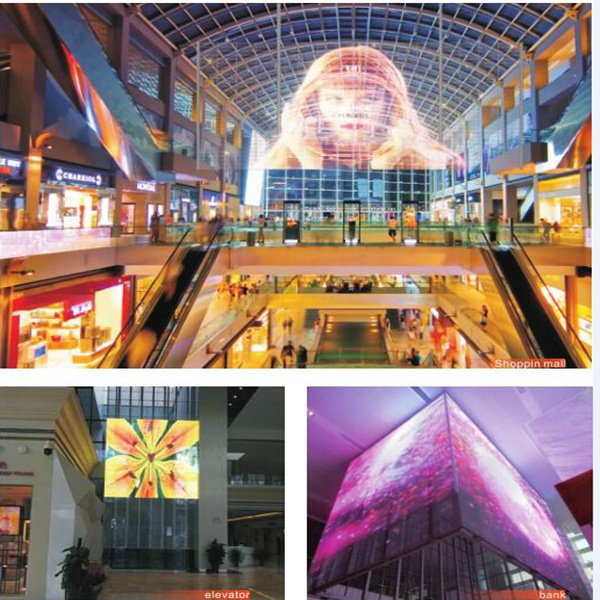

The Transparent Panel LED Display, mainly used for some large glass curtain wall places.Any building with glass wall, for example, bank, shopping mall, theatres, chain stores, hotels, and landmarks etc.
★ High transparency
55%-67% transparency rate could keep the internal natural lighting and viewing, the SMD are almost invisible from a certain distance.
★ Light weight
PCB board is only 10mm thickness, 14kg/㎡ light weight allow small space for the installation possible, and minimizes the negative impact on the appearance of the buildings.

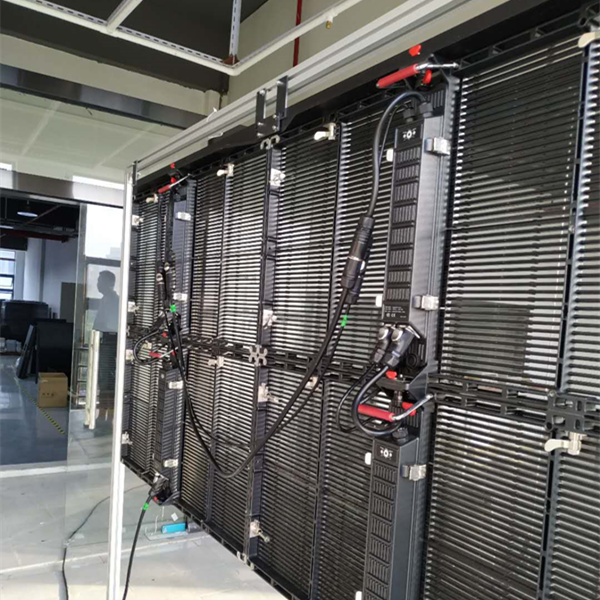

★ Fast installation
Fast lock systems ensure fast installation, saving labor cost.
★ High brightness and energy saving
5000nits brightness ensure the perfect visual performance even under direct sunlight, without any cooling system, saves lots of power.
★ Easy maintenance
Repairing single SMD without taking of single module or entire panel.
★ Stable and reliable
Stability is very import for this product, under the patent of inlaying SMD into PCB, ensure the stability better than other similar products in the market.
■Technical Parameters
| item | Product Parameter | WT7.8A | WT7.8B | WT10.42A | WT10.42B |
| Physical | Pixel Pitch(mm)(W/H) | 3.9W/7.8H | 3.9W/7.8H | 5.2W/10.4H | 10.4W/10.4H |
| LED Type | SMD2020 | SMD1921 | SMD1921 | SMD1921 | |
| Pixel Density (px/sqm) | 32873px/sqm | 16436px/sqm | 9216px/sqm | 4608px/sqm | |

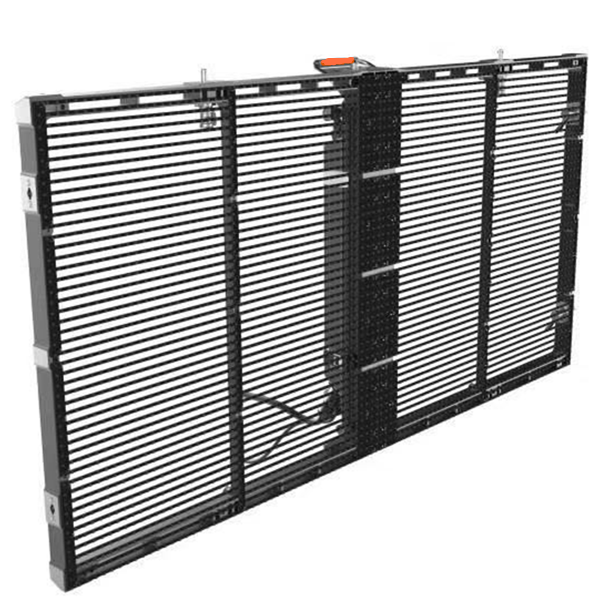

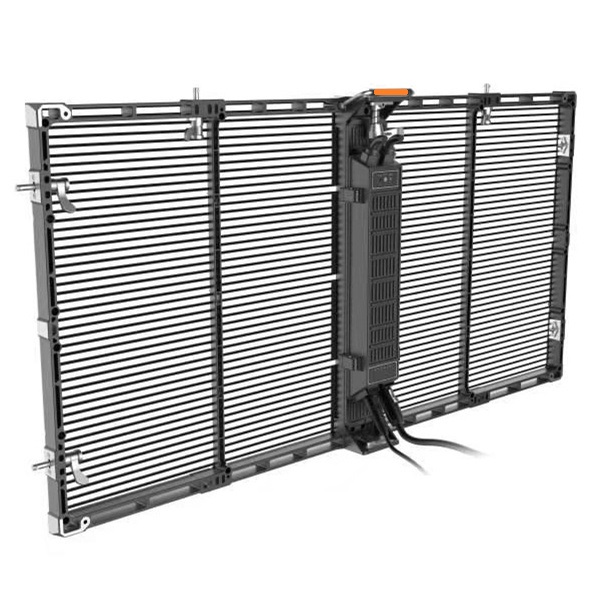

| Cabinet Size(WxHxD)(mm) | 500x1000x80mm / 1000x1000x80mm | ||||
| Cabinet Resolution(px) | 256*64 | 256*64 | 96*48 | 96*96 | |
| Cabinet Material | Aluminum /Die-casting | ||||
| Cabinet Weight(kg/pcs) | 7kg/pcs | 7kg/pcs | 7.5kg/pcs | 7.5kg/pcs | |
| Transparency | 55% | 55% | 67% | 67% | |
| Concave optional (customizable) | Max.10° | Max.10° | Max.10° | Max.10° | |
| Maintenance time | 10S/Cabinet | ||||
| Maintenance Mode | Rear | ||||
| Opto. | Driving method | 1/8 San | 1/4San | 1/16 San | 1/8 San |
| Brightness (CD/m² ) | 1200cd/m2 | 1200cd/m2 | 5000cd/m2 | 5000cd/m2 | |
| ViewingAngle(H/V) (°) | 140° / 140° | ||||
| RefreshFrequency (Hz) | 1920Hz~3840Hz | ||||
| Gray Scale（bit） | 14bit | ||||
| Power | Power supply (Input) | AC90~264V 50/60HZ | |||
| AVx.Power/ Max.Power Consumption (w/sqm) | 800/300 W/sqm | 800/300 W/sqm | 800/300 W/sqm | 800/300 W/sqm | |
| Environment | Operating Temperature(℃) | - 20℃~+50℃ | |||
| Operating Humidity | 10％~95%RH | ||||
| Lifetime(hr) | 100,000 | ||||
| IP Rating | IP31 | IP65 | IP31 | IP65 | |
| Certifications | CE, ETL, FCC，CCC | ||||
| Application | Fixed installation / Hanging installation /Stacking | ||||
●Application

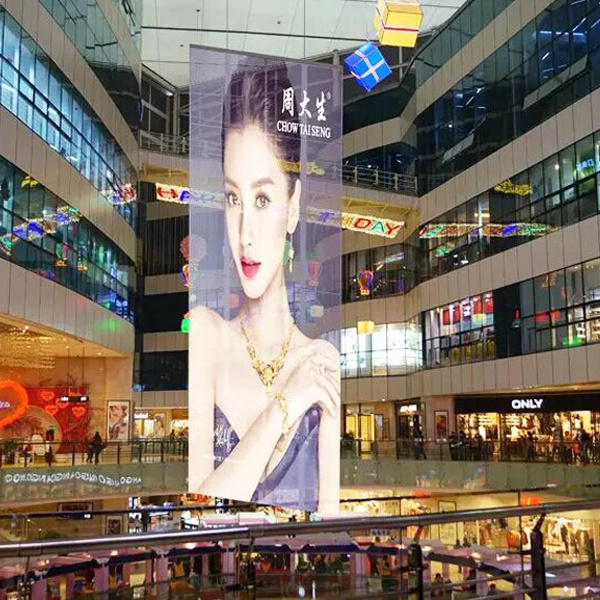

The Transparent Panel LED Display had been widely accepted by the customers worldwide. With the advantages of good heat dissipation, fast installation, high transparency, high brightness and easy maintenance, transparent LED display could be used behind any shape of glass surface, and keep the internal natural lighting and viewing, that s the reason why its the best choice of glass wall advertising. |
|
