  • SMD Indoor Fixed LED Display 2.5-10mm

Name:SMD Indoor Fixed LED Display 2.5-10mm
Application:Indoor Fixed installation

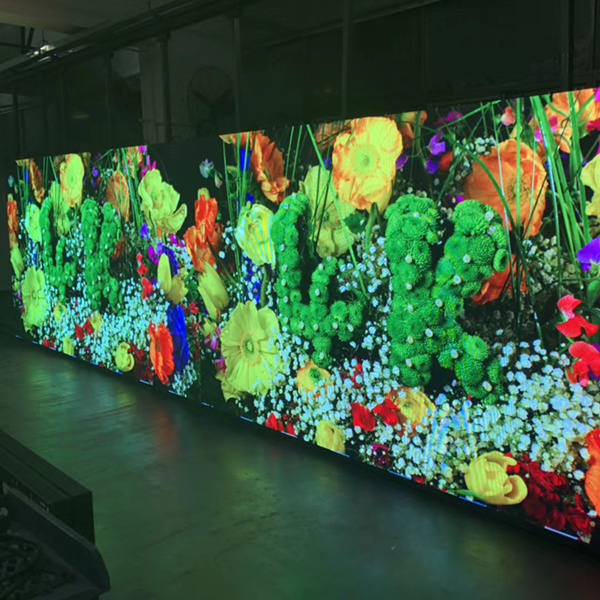

 SMD Indoor Fixed LED Display

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display. The display can be used at banks, indoor stages, concert halls, station, summit rooms, exhibition and theatres etc.

 Unique Design - Easy to Install & Transport

The cabinet of Energy Saving Indoor Full Color LED Display features unique rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation cost. It's damage free and lasts for a lifetime. Pick out from different standard colors of cabinets.

★ Space Saving, Ultra-lightweight

The Indoor Full Color LED Display is very thin which makes it ultra-lightweight and space saving. Can be installed at any area without requiring much space. The light weight of 30kg/sqm LED screen is easy to carry, transport and install - saving good amount of money on your labor costs.

★ Silence Operation - Low Power Consumption

The Indoor Full Color LED Display is known for its silence operation and low power consumption. It is also known for fast heat dissipation which will save more energy. Cut on the electricity expenses and help environment with this highly advanced advertising display.

★ Wide Viewing Angle for Broader Reach

The display features a wide viewing angle of 140° horizontal and 140° in vertical which reaches more viewers. The picture quality remains seamless in all direction and at a distance, presenting all viewers the same highly quality outputs. This makes it suitable for large gathering.

★ High Refresh Rate And High Gray Scale

The Indoor Fixed LED Display is manufactured as per latest technology-dynamic scanning mode which offers higher Gray Scale and high refresh rate. It features a high refresh rate of 1920Hz, producing best quality outputs in form of pictures, videos and texts.

★ Featured quality materials

High-quality raw materials, mature technology, large-scale production ensure stable and reliable quality.

■Technical Parameters

ItemPart Number  IS-P2.5IS-P3IS-P6IS-P10
LEDPixel   Pitch(mm)(W/H) 2 .53610
Pixel Density (px/sqm)160000 px/sqm111111 px/sqm27777 px/sqm10000 px/sqm

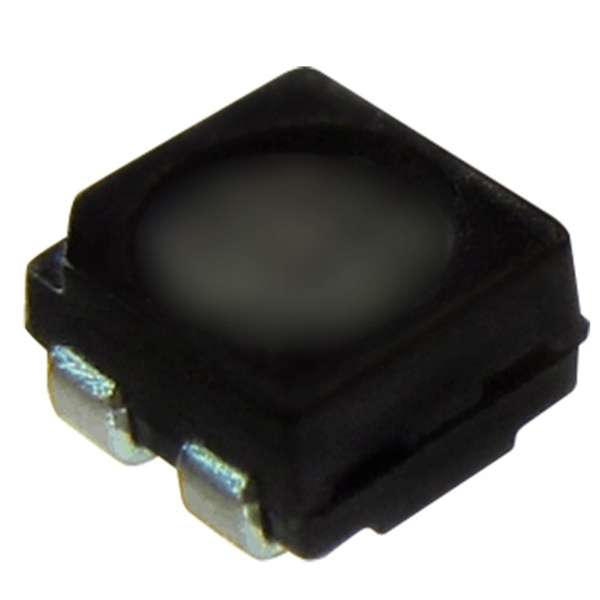

The LED typeSMD2121SMD2121SMD3528SMD3528

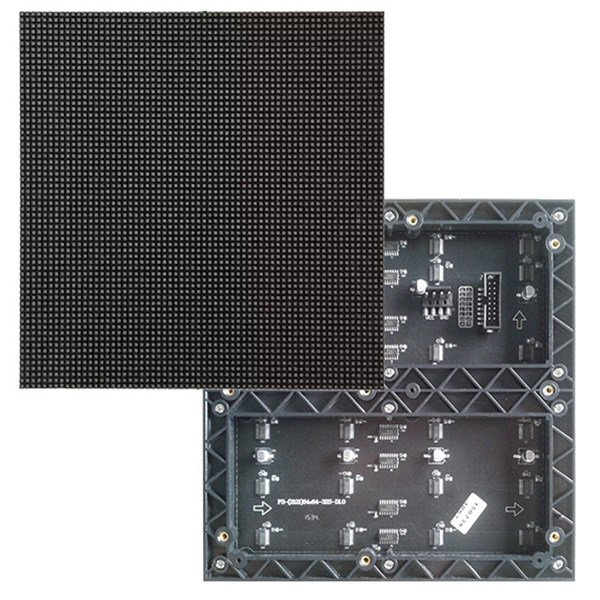

Unit    ModuleUnit  Module    size (WxHxD)mm160×160x15mm192×192x15mm384×192x15mm320×160x20mm
Module resolution64*64 px64*64 px64*32 px32*16 px
Driver mode 1/32san 1/32san 1/16san 1/8san
Mask MaterialNGNG90%plastic+10% fiber90%plastic+10% fiber
Module current    (w/pcs)14w/pcs18w/pcs26w/pcs12w/pcs
Module Weight (Kg/pcs)    0.25kg/pcs0.28kg/pcs0.42kg/pcs0.31kg/pcs

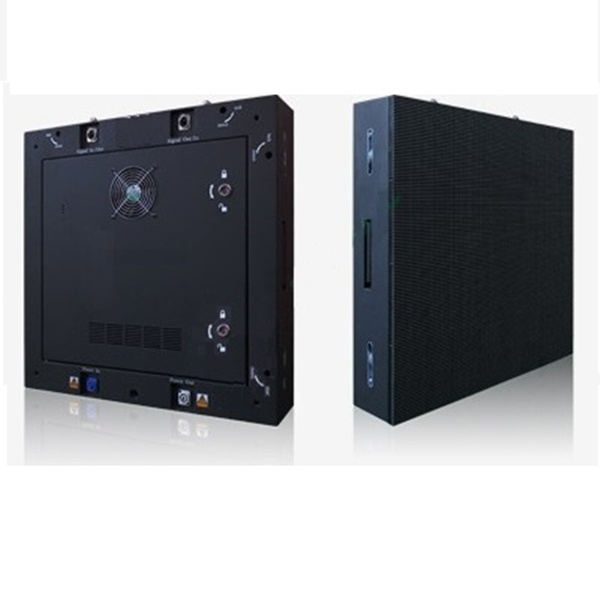

CabinetCabinet   Size(WxHxD) (mm) (customizable)              640x640x140mm  Customizable576x576x140mm  Customizable768x768x140mm  Customizable960x960x140mm  Customizable
Cabinet Resolution (px)256*256   px192*192   px128*128px96*96   px
Cabinet MaterialAluminumAluminumSteel /AluminumSteel /Aluminum
Cabinet Weight ( kg/m²)35kg/sqm35kg/sqm35kg/sqm35kg/sqm
Concave (customizable)   Max.10°  Max.10°  Max.10°  Max.15°
Maintenance ModeFront/RearFront/RearFront/RearFront/Rear
Opto.Brightness   (CD/sqm )1000-2000 CD/sqm1000-2000 CD/sqm1200-2000 CD/sqm1200-2000 CD/sqm
Viewing Angle(H/V) (°)140°/120°140°/120°140°/120°140°/120°
RefreshFrequency(Hz)1920 Hz1920 Hz1920 Hz1920 Hz
Gray Scale(bit)12~16bit
Display Color281Billion
Brightness adjustment256grade
Scree uniformity correctionBrightness + calibratioty
Control systemControl   ModeSynchronization display with control PC by DVI
Support video InputRF, Composite Video, S-Video, DVI, CATV ect
Frame Frequency50~60Hz
Control DistanceHSYV:100m; SMF:20KM
Power supply Power   supply (Input)AC 90~264V 50/60HZ
Max.Power Consumption (w/sqm)450W/m²500W/m²350W/m²230W/m²
Avx.Power    Consumption (w/sqm)200W/m²200W/m²170W/m²120W/m²
Reliability Operating   Temperature - 20℃~+60℃
Operating Humidity10~95% RH
Lifetime (hr)           100,000
MTBF(hr)   20,000
Protection LevelMoistureproof, dustproof, anti-corrosion,   anti-static, lightning protection, over current&short   circuit&overvoltage&undervoltage protection function
IP Rating IP41
CertificationsCE, ETL, FCC,CCC

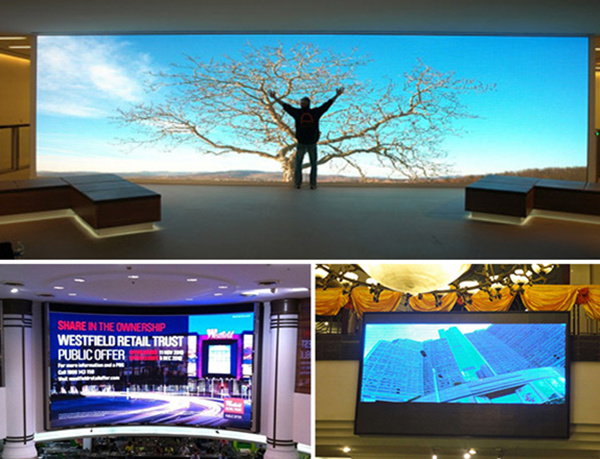

The Indoor Full Color LED Display is highly usable at indoor places like malls, stages, chain stores, hotels, public buildings, bars, restaurants, banks etc. Its thin size and ultra-lightweight module makes it easy to install at any area without covering much space.
